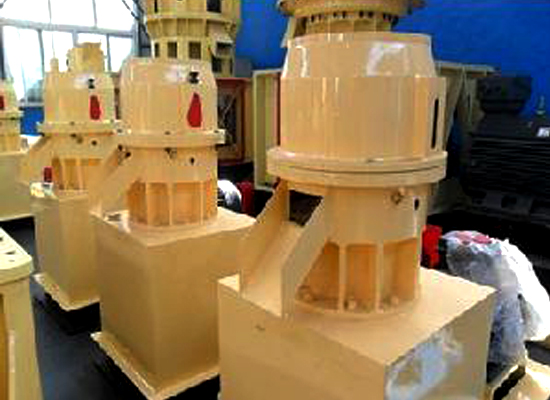

Biomass Pellet Mill
Raw materials for Biomass pellet mill:
Any type of agri-forestry waste can be used:
1. wood waste, sorbs, branch, palm tree, sugarcane residue, saw dust , medical slag, hay, discarded edible fungus bags
2. bean stalk, wheat stalk, corn stalks, cotton stalks, sunflower stalks, mustard stalk, rice stalks, rice husk, coffee Husk, cotton shell, peanut shell, rice shell, coconut shell.
The whole biomass pellet production line:
1. The biomass energy pellet production line includes the cutter or wood chipper, crusher, drier, mixer, pellet mill, cooler, screener, packing machine and other supporting machines in the plant. We have three grades of the wood machinery line,and our engineer will design the suitable machinery for you according to your demands and budget.
2. The wood pellet production line is a new complete line. It is good at making wood pellets.
3. The best raw material moisture content is 13%.
Final biomass pellet application:
1. you can sell local market for house stove
2. for generate electricity
Packing condition of biomass pellet mill:
1. according to the specific size of each equipment, we twine thick plastic coating for each or wooden box.
2. put the equipments in the trunk tightly without space to ensure no rub during the transportation.
Main advantages of biomass pellet mill
1. Using industrial-grade reducer drive structure,further optimize the speed ratio,make the perfect combination of transmission efficiency and durability. Its excellent performance by no means simple gear or belt drive models can be compared.
2. Change the blockage to dredge,proceed from the structure, completely change the pellet machine after long-term use raw materials increased leakage conditions.
3. Optimization of automatic lubrication system,on the basis of without downtime to realize automatic lubricating the bearing on various parts of the machine, further equipped with a pressure value to induction grease filling quantity and timely automatically adjusted,really perfect lubrication and save per gram of grease.
4. Optimized the lifter of the pelleting chamber to enhance pelleting efficiency and quality again.
5. In the traditional made of alloy material and heat treatment of roller manufacturing process,again for a second special processing,make the durability of the roller to the next level,to achieve the industry-leading level.
Specifications of biomass pellet mill
Model |
LGX-900 |
LGX-750 |
LGX-550 |
LGX-450 |
Power
(kw) |
Main Machine |
90 |
75 |
55 |
45 |
Pellet Pusher |
1.5 |
1.5 |
Spindle drive |
Spindle drive |
Electric Grease Pump |
0.37 |
0.37 |
0.37 |
0.37 |
Machine Weight ( t ) |
6.8 |
5.6 |
3.6 |
2.9 |
Rotation Speed (r/min) |
1450 |
1450 |
1450 |
1450 |
Voltage (v) |
380,3phase or
customized |
380,3phase or
customized |
380,3phase or
customized |
380,3phase or
customized |
Mould Diameter (mm) |
550 |
500 |
450 |
400 |
Pellet Size (mm) |
4-12 |
4-12 |
4-12 |
4-12 |
Palletizing Temperature |
80-100 |
80-100 |
80-100 |
80-100 |
Raw Material
Moisture Content (%) |
15-25 |
15-25 |
15-25 |
15-25 |
Capacity (t/h) |
1.2-1.5 |
1-1.2 |
0.8 |
0.6 |
