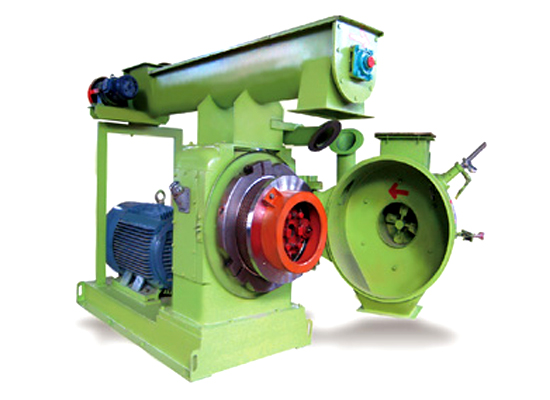

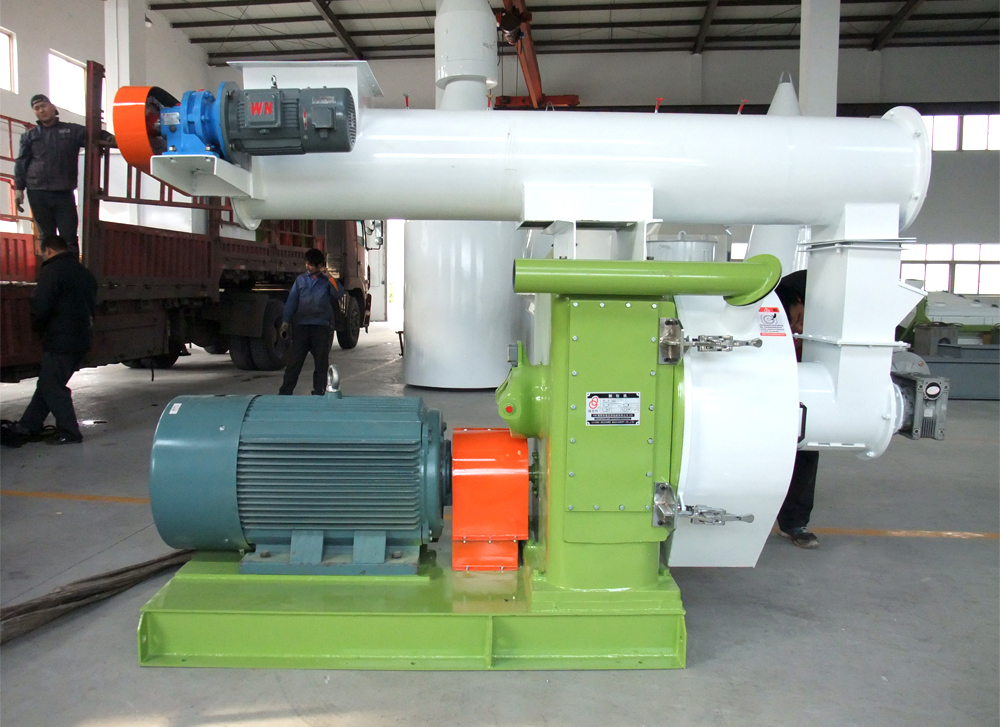

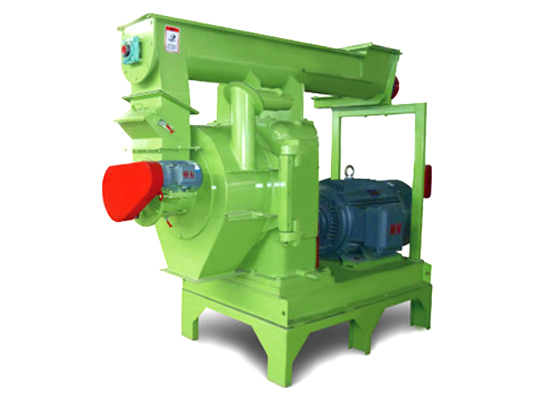

Wood Pellet Mill

Brief Introduction of wood pellet mill
Wood Pellet Mill also called ring die wood pellet mill , it can make the materials like corn stalks, straw, rice bran, wood sawdust and other agricultural wastes into pellets shape biomass fuel for burning, the pellets can be used for stove, boiler, gasifier, power stations and so on. The capacity is 0.5-20t/h. Our factory has more than 17 years production experience and our machines have got CE, ISO9001:2008 and SGS certifications. All of our workers will try our best to offer you good quality machines and professional suggestion.
Wood Pellet Mill is a kind most widespread ring die wood pellet mill in China markets and abroad. Its special design is professional for making biomass pellets for burning. It has many advantages than flat die pellet mill, such as less wear and tear, more energy efficiency, steady performance etc. It also popular used in the light industry and large pellet plant. This ring die wood pellet mill is suitable for making not only wood sawdust but also other biomass materials into pellets, such as rice and wheat straw, corn stalk, rice bran, wood logs, cotton stalks and so on. Now our ring die wood pellet mill has been exported to New Zealand, Russia, Oman, Bangladesh, Thailand, South Korea and so on.
This wood pellet mill mainly consists of feeding device, hardening and tempering device, face plate, press chamber transmission system, overload protection and electrical control system. And our machine uses the thicken steel plate which is thicker than the industrial standard. What's more, we adopts the famous Sweden SKF bearings and other famous brand spare parts. This design can help the machine works for a long time without maintenance.And the ring die wood pellet mill has low price.

Working Principle of wood pellet mill
The ring die and the roller of wood pellet mill are the most important components. The ring die of wood pellet mill is drilled with a lot of hole, and enclose the two rollers which are fixed on a support. Materials after hardening and tempering enter the ring die cover through inclined channel. Under the gravity, centrifugal pull, and the effect of the scraper, the materials will be fed into the compression zone formed by the ring die and the roller. Because the space between the ring die and roller is limited (0.1~0.3mm), the materials will be pressed with great force into the holes on the ring die. During this process it will gain a certain density and shape. After that, the shaped materials will be pushed out and cut into a certain length by the cutter outside of the ring die.

Features of wood pellet mill
1. Main engine drives with high precision gear, ring die in quick detaching encircling hoop type, output is 20% higher than belt drive.
2. Equipped with steam automatic regulatory system to keep refining temperature constant.
3. Adopt international advanced ring die processed by heat treatment vacuum furnace, lengthen useful life and pellet is more smooth with high quality.
4. With full stainless steel door, flume and pull cutter which is convenient and reliable.
5. Advanced and reliable over-load protection.
6. The bearings of wood pellet mill adopts Sweden SKF bearings.
7. The 1.5-12mm models are equipped with a wide range of pore size and thickness between the ring mode, the user needs according to different arbitrary choice in order to get the best technical and economic benefits from wood pellet making machine.

Technical Parameter of Wood Pellet Mill

Model	Power of main motor(KW)	Capacity (t/h)	Power of feeding motor(KW)	Power of conditioner (KW)	Diameter of ring(mm)	Size of finished pellets (mm)
SZLH25	11*2	0.2-0.3	0.75+0.55	2.2	250	6-10
SZLH32	37	0.3-0.6	0.75+0.55	2.2	320	6-10
SZLH35	55	0.5-0.8	0.75+0.75	2.2	350	6-10
SZLH40	75	0.7-1.1	1.5+0.75	2.2	400	6-10
SZLH42	110	1.0-1.5	1.5+0.75	5.5	420	6-10
SZLH508	132/160	2.0-3.0	1.5+0.75	7.5	508	6-10

Our Service
We offer 3-R guarantees: guaranteed repair, replacement and refund for our merchandises within 6 months of selling. After 6 months, it is charged. We offer accessories replacement all the year round.
Transportation and storage
Exporting standard, the animal feed pellet machine is packed in wooden case or for your demand, the pelletizer machine for animal feeds is suitable for long distance sea transportation.
Protect and pack the machine properly, fix the machine well to avoid any accident during the transportation.

why choose us?-----Winnermac
1. Material thickness of main equipment is more than feed machinery standard 2mm,you can weigh and contrast----please pick up the caliper and calculator to inspect.
2. Paramilitary after-sale,24-hour rapid response for full-time.After-sales personnel must start at once within an hour after receiving phone for help(we will drive car within 500km;choose train within 500-1000km;take plane more than 1000km).

We are expert for wood pellet mill, we can also design the production line for your needs. Welcome to visit our our factory, we can show you our customer's production site in China. All of our teams will try our best to help you build a very powerful and strong feed production plant. Waiting for your coming!!!
