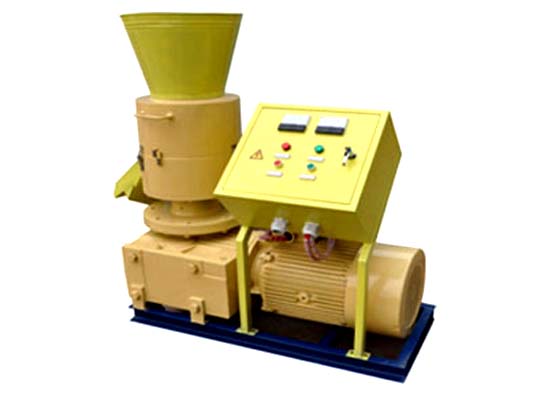

Small Pellet Mill

Application of Small pellet mill:
The Small pellet mill is applied to large-sized, medium-sized and small bio-mass energy fuel plant, wood working factory, municipal refuse cleaning plant, organic fertilizer plant, chemical plant, animal feed plant and fishery etc. Low investment, quick efficience, no risk, are the idealest compact shaped equipments.

Introduction of Small pellet mill:
1. Small pellet mill absorb elite of Germany pellet mill, the heart parts“die”and “rollers”are made by high alloy steel wear resistant material according to different materials, have the long lifetime. The transmission parts of small wood pellet mill adopt auto differential, drum junctor or universal joint drive.
2. Little noise, low energy consumption, high efficience and easy operation the series pellet mills were developed elaborately to be our patent products. Small pellet mill is produced by special technologies, the made fuel pellets have big density and high heating power.
3. The Small pellet mill specifications can be adjusted at will through changing die.

Technical parameters of Small pellet mill:

Model	Power (KW)	Capacity(KG/H)	Pellet Diameter (MM)
SKJ150 pellet mill	7.5	50-150	2.5-4
SKJ200 pellet mill	11	150-300	2.5-6
SKJ250 pellet mill	15	200-400	2.5-6
SKJ280 pellet mill	22	300-600	2.5-8
SKJ300 pellet mill	30	400-800	2.5-8

Model	Power (KW)	Capacity(KG/H)	Pellet Diameter (MM)
SKJ2-350 pellet mill	37	500-1000	3-8
SKJ2-450 pellet mill	45	800-1200	3-8
SKJ3-350 pellet mill	37	600-1000	3-8
SKJ3-450 pellet mill	45-55	1000-1500	3-8
SKJ3-550 pellet mill	75-90	2000-3000	3-10
SKJ3-800 pellet mill	130-160	3000-5000	3-10
SKJ4-1200 pellet mill	280-320	5000-8000	3-10
