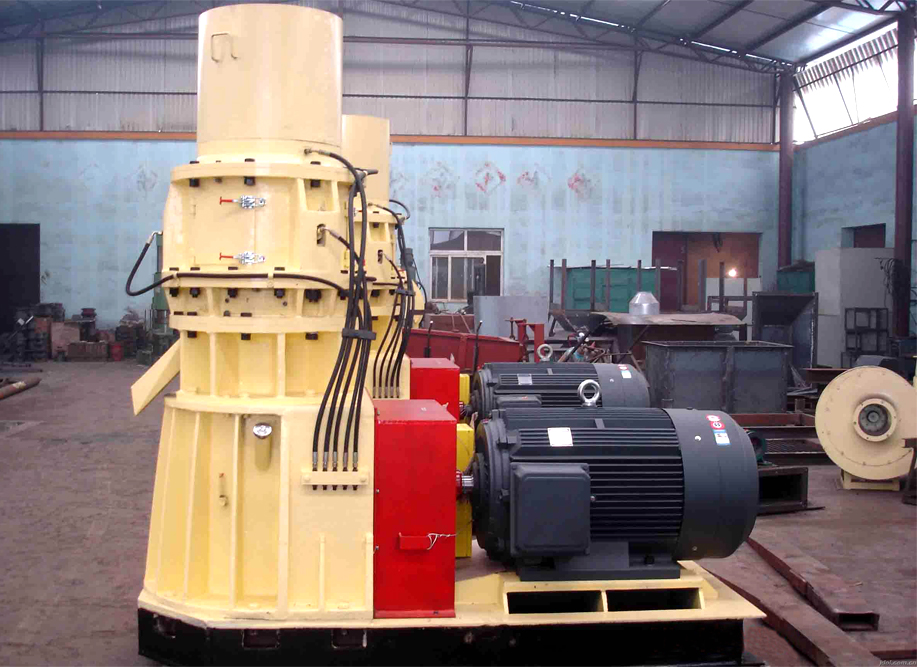

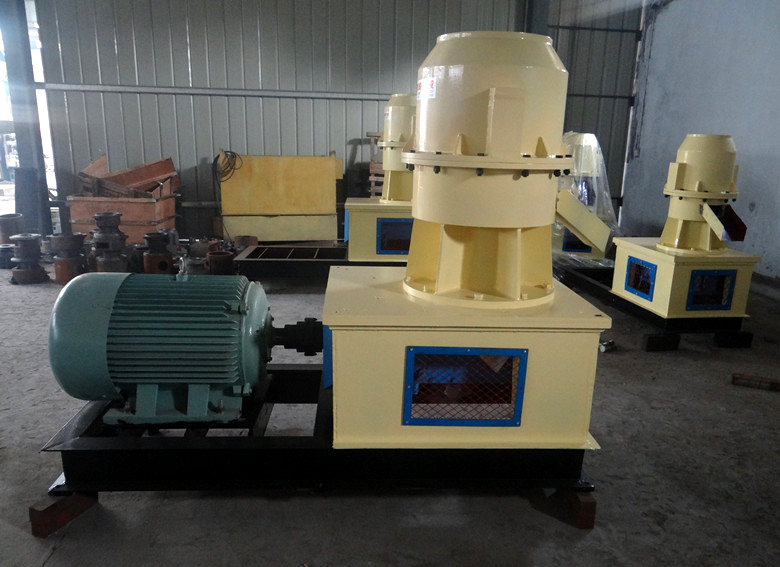

Flat Die Pellet Mill
1. Brief Introduction of SKJ Series Flat Die Pellet Mill:
(1) Our products SKJ Series Pellet Mill is made through special technique, and is used to process fuel particles, with large compactness and high fuel value.
(2) The Pellet Mill s’ particle specification could be adjusted at will by replacing mould.
(3) Feed particles have smooth surface, appropriate hardness, high degree of inner curing which could lead to starch pasting and protein solidification, improved nutritive quality of feed, easy digestion and absorption, as well as the death of common pathogenic germ and parasite.
(4) Fertilizer particles could be pressed after going through mould compression ration adjustment. When the instantaneous temperature rises to low-temperature pelleting standard (below 60 degree) during pelleting process, low temperature materiel such as bio-organic fertilizer, bio-bacteria fertilizer, compound fertilizer could form into pellets.
Function and advantages of SKJ Series flat die wood pellet mill
1. Flat die wood pellet mill is for home and industrial using. it can press 2-8mm diameter biomass fuel,animal feed and fertilizer pellets from biomass or other waste materials, such as sawdust,rice husk, agricultural stalk,straw,peanut shell,sun flower,paper,plastic,grain, soybean,maize, animal manure and so on.
2. Flat die wood pellet mill adopts Germany technic ,which is our national patent product. the flat die has the unique advantages bearing more pressure than ring die pellet mill .ring die is restricted by its diameter, its roller can not be enlarged engough, bearing room is smaller , so the assembly bearing are not strong engough to withstand pressure. especially for crude fiber biomass materails, there will be much friction between rollers and die , needs high pressure to press good pellets, so flat die pellet mill is more popular all over the world.
3. Flat die wood pellet mill can make biomass pellets for burning and make feed,fertilizers for farm using. the engine can be changed into diesel or tractor .very tangible benefits and convenience.
Technical parameter of SKJ Series Flat Die Pellet Mill
Model |
Output(kg/h) |
Power(k w) |
Diameter(mm) |
SKJ150 |
30-50 |
7.5-4 |
4-6 |
SKJ200 |
30-80 |
11-4 |
4-6 |
SKJ250 |
80-200 |
15-4 |
4-6 |
SKJ300 |
100-300 |
30-4 |
4-8 |
SKJ350 |
300-600 |
37-4 |
4.5-10 |
SKJ450 |
500-800 |
55 |
4.5-10 |
SKJ550 |
1000-2000 |
90 |
2-15 |
Model |
Output(kg/h) |
Power(kw) |
Pellet Size
(mm) |
Weight(T) |
Size(mm) |
SKJ2-200 |
100-200 |
11 |
4-8 |
0.2 |
1300*500*850 |
SKJ2-250 |
150-200 |
15 |
4-8 |
0.5 |
1400*600*1000 |
SKJ2-280 |
150-300 |
22 |
4-8 |
0.65 |
1750*700*1100 |
SKJ2-300 |
200-300 |
30 |
4-10 |
0.76 |
1860*670*1600 |
Model |
Output(kg/h) |
Power(KW) |
SKJ3-350 |
300-500 |
37 |
SKJ3-450 |
500-800 |
55 |
SKJ3-550 |
700-1200 |
90 |
SKJ3-800 |
1500-2500 |
130-160 |
SKJ4-1200 |
3000-5000 |
280-320 |

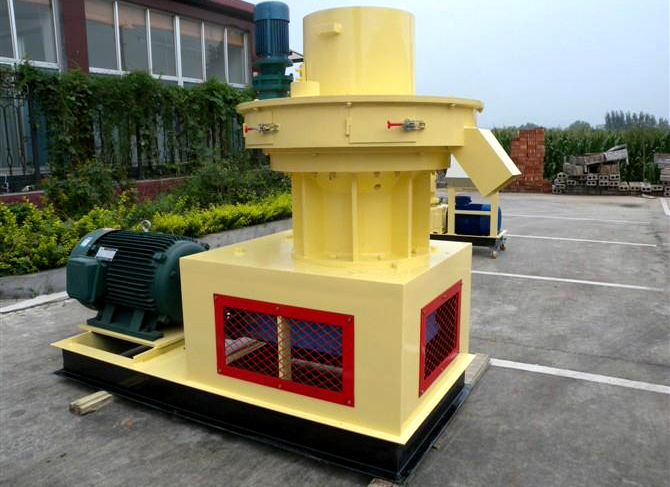

Brief introduction of XGJ series Flat die wood pellet mill:
XGJ series efficient centrifugal pellet mill is our initiative patented product in China through meticulous research and development.
The pellet machine absorbed the essence of pellet mill in oversea market, its heart part “double-layer die” has unique structural assembly and ‘'rollers'' are made by high-abrasion-proof alloy steel and stainless steel, which improves the using life of spare parts greatly.
It has automatic lubricating system that the grease is injected and filtrated automatically, which can ensure the long time working without stop. It also has dust and cooling system that can reduce the dust during it working and improve the working environment.
Special design, rational structure, low power consumption and high efficiency, sturdy and durable, it achieves combining the advantage of both flat die pellet machine and horizontal ring die pellet mill and becomes the real professional pellet machine that is used to the materials with low adhesiveness and low shaping, such as the rice husk, sunflower husk, peanut shell and other fruit shell, branch, trunk, bark and other wood waste, a variety of crop straws, household waste, rubber, cement, ash and other chemical materials.
This type of pellet mill is widely used in the biomass-energy fuels plant, power plant, wood processing plant, MSW processing plant, fertilizer plant, chemical plant etc. It is the ideal pressing shaping equipments with low investment and high profit.
Technical parameter of XGJ series efficient centrifugal pellet mill
Model |
Power (kw) |
Pellet Size (mm) |
Output (t/h) |
XGJ560 |
90 |
6-12 |
1-1.5 |
XGJ720 |
160 |
6-12 |
1.5-2.5 |
XGJ850 |
220 |
6-12 |
2.5-3 |
XGJ920 |
315 |
6-12 |
3-4.5 |
XGJ1050 |
315-450 |
6-30 |
4.5-6 |
XGJ1250 |
550-660 |
6-30 |
7-8 |
