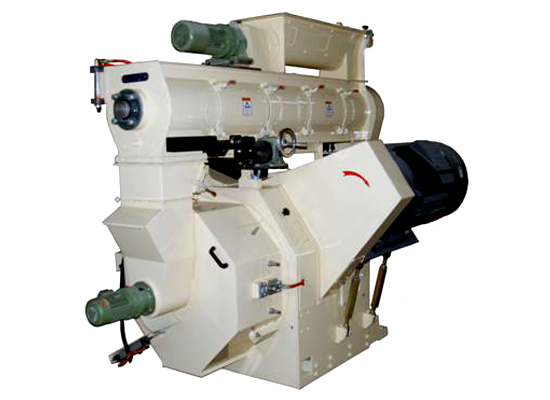

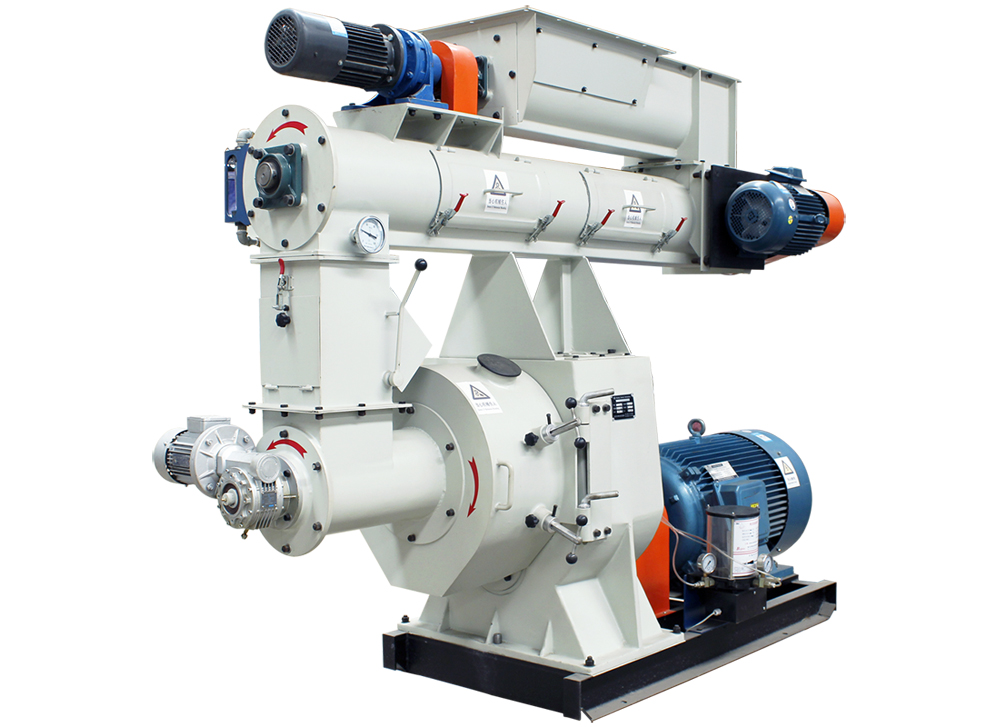

Ring Die Pellet Mill

1. Brief Introduction of SKJ Series Flat Die Pellet Mill:
ring die pellet mill is used to make animal feed pellets/wood biomass pellets.

Raw material can be corn,wheat/rice husk,wood sawdusts,peanut shell,etc.
For animal feed pellets,raw material can be corn,maize,wheat,etc.,to feed animals,because the pellets add vitamin,protein,and so on,can keep nutrition and easy to store or sell after packing.
For biomass pellets,raw material can be wood sawdust,wood powder,crop stalk,rice husk,corn stalk,cotton stalk,grass,peanut shell,coconut shell,etc. The biomass pellets with high heat value, burning time is longer than raw wood,low consumption,the biomass pellets can be burnt to produce gas,and then producing electric,also,the pellets can be used to burn to keep warm in some cold area,can use in furnace or stove.

Process of making feed pellets by our ring die pellet mill:
1, Crushing the raw material into less than 5mm powders;
2, Dry the crushed materials to 8-12%;
3, Pressing to powder raw materials into pellets,for the feed pellets size,we can make 1.5-18mm according to customers’ requests.

Advantages of ring die pellet mill:
1. Super quality
Material thickness of main equipment is more than pellet machinery standard 2mm;
The weight is heavier than feed machinery 20%.

2. Our Ring Die Pellet Mill with high configuration

Spare part	Brand Name
Electric motor	SIEMENS (Germany)
Level detector	Autonics (Korea)
Crusher Bear (Jiangsu China)ring	NSK(Japan)
Pellet machine bearing	SKF(Switzerland)
IPC(industrial personal computer)	ADVANTECH Industrial Controlled Computer (Taiwan)
position switches	Omron (Japan)
Reduction box	Itc cathay Pacific (Jiangsu China)

Technical Parameter of ring die pellet mill

Model	LH250	LH320	LH350	LH 400	LH 420	LH508
Main Motor Power (kw)	22	37	55	90	110	160
Conditioner Power (kw)	1.5	2.2	2.2	3	5.5	7.5
Dia of mould (mm)	250	320	350	400	420	508
Feeder Power (kw)	0.75	1.5	1.5	1.5	1.5	2.2
Size of Finished pellets (mm)	1.5-12	1.5-12	1.5-12	1.5-18	1.5-18	1.5-18
Yeild (t/h) for animal feed	1-2	2-4	2-6	3-8	4-12	4-18
Yield (kg/h) for biomass pellets	200		500		1000
