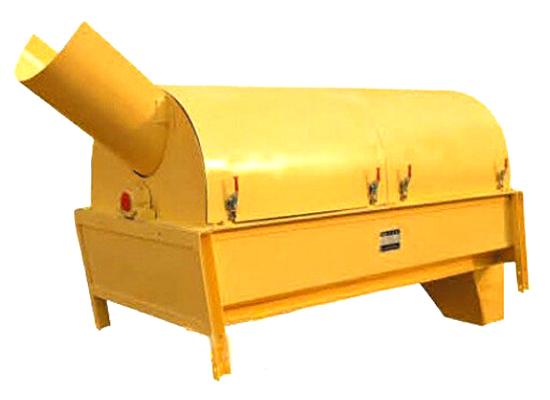

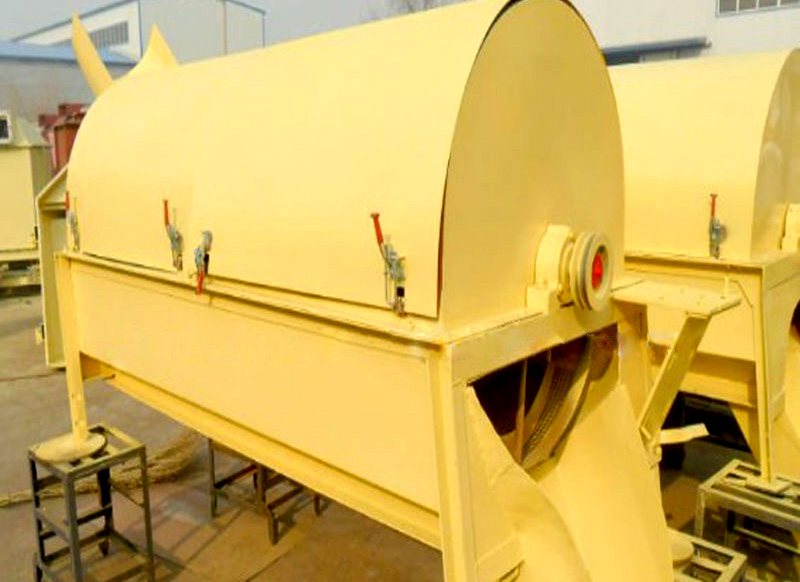

Rotary Screen

Brief Introduction of Rotary Screen
Rotary screener has been qualified, advanced and mature technology of products in our company. This kind of rotary screener has wide adaptability, feeding way simply, smooth operation, high screening efficiency and large capacity under low power consumption.

According to the size of screen hole can screen material separately, rotary screener widely applied in all kinds of materials screening, most common are used in application of biomass processing plant or bio-fertilizer industry.

Specification of Rotary Screen:

Model	Power (kw)	Output (t/h)	Dimension
GTS80X2	1.1	0.5-1	2150X1200X1200
GTS100X2	1.5	1.2	2800X1300X1460
GTS120X3	2.2	1.5-4	4420x1500x3800
GTS150X4	3	3-5	5160x1700x4400
GTS180X6	5.5	5-10	6300X2200X2600
GTS-200X6	6	8-12	7000X2500X5000
GTS-220X6	7	8-15	7200X2800X5000
